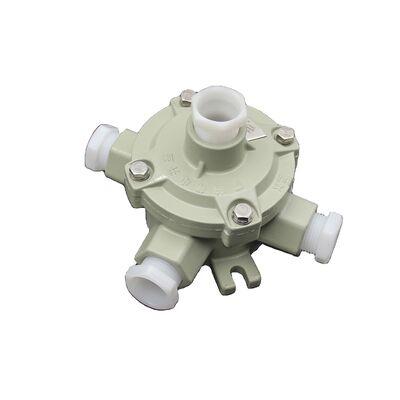

Ex Mark Ex Db IIC T6 Gb Ex Tb IIIC T80°C Db Explosion Proof Junction Box Wall Installation Ideal for Hazardous Area Wiring

Product Description:

The Explosion Proof Junction Box is a highly reliable and robust solution designed specifically for use in hazardous environments such as oil and gas facilities, chemical plants, and paper mills. Engineered to provide superior protection against explosive atmospheres, this junction box is an essential component for industries where safety and durability are paramount. Its design caters to the demanding conditions found in Zone 1 and Zone 2 hazardous areas, making it an indispensable choice for professionals working within the oil and gas industry and related manufacturing sectors.

This item type is classified as an Explosion-Proof Flameproof Junction Box, which means it is constructed to contain any ignition within the enclosure, preventing sparks or flames from escaping and igniting the surrounding atmosphere. The Flameproof Terminal Housing ensures that all electrical connections within the box are securely enclosed, minimizing the risk of fire or explosion. This feature is critical in environments where volatile gases, vapors, or dust may be present, such as chemical plants and oil refineries.

One of the standout features of this junction box is its Vapour Proof Junction Casing. This casing is meticulously sealed to prevent the ingress of vapors and other potentially harmful substances, thereby maintaining the integrity of the electrical components inside. The vapour proof design not only enhances safety but also extends the lifespan of the electrical connections by protecting them from corrosion and contamination. This is particularly valuable in harsh industrial environments where moisture and chemical exposure are common.

In addition to being vapour proof, the junction box incorporates a Spark Resistant Junction Compartment. This compartment is engineered to resist sparks generated by electrical faults or intermittent connections, further reducing the likelihood of ignition in explosive atmospheres. The spark resistant feature adds an extra layer of safety, ensuring that the junction box can reliably operate even under adverse conditions. This makes it ideal for use in oil and gas operations, chemical processing plants, and paper mills where the presence of flammable materials is a constant concern.

The product also boasts an impressive IP66 water proof rating, signifying its ability to resist powerful water jets and complete dust ingress. This high level of protection ensures that the junction box remains operational and safe even when exposed to harsh weather conditions, washdowns, or accidental spills. The IP66 rating is a testament to the product’s rugged construction and suitability for outdoor or industrial applications where moisture and dust are prevalent.

In terms of installation, the Explosion Proof Junction Box comes with multiple entry points as indicated in the product illustration, providing flexibility and ease of integration into existing electrical systems. This versatility allows it to accommodate a variety of wiring configurations and conduit sizes, making it adaptable to different industrial setups and requirements.

Overall, the Explosion Proof Junction Box is a critical safety device designed to meet the stringent demands of hazardous areas. Its combination of Flameproof Terminal Housing, Vapour Proof Junction Casing, and Spark Resistant Junction Compartment ensures that it provides comprehensive protection against explosion risks. Whether used in the oil and gas industry, chemical plants, or paper mills, this junction box delivers dependable performance, enhanced safety, and long-term durability. Its IP66 water proof rating and suitability for Zone 1 and Zone 2 hazardous areas further underscore its capability to operate in some of the most challenging industrial environments.

Choosing this explosion-proof junction box means prioritizing safety without compromising on quality or functionality. It is an essential investment for any facility looking to safeguard its electrical infrastructure and personnel from the dangers posed by flammable gases, vapors, and dust. Trust in this product to deliver exceptional protection and reliability where it matters most.

Features:

• Product Name: Explosion Proof Junction Box
• Type: Junction Box
• Enclosure Material: Aluminum Alloy
• Use Area: Zone 1, 2; Hazardous Area; Oil & Gas Industry
• Overall Dimension: Customer Settings
• Entry Number: See Illustration
• Spark Resistant Junction Compartment for enhanced safety
• Flameproof Terminal Housing to prevent ignition
• Designed as an Explosion Proof Junction Box for hazardous environments

Technical Parameters:

Applications:

The Crown Extra Explosion Proof Junction Box, model CJX, is specifically designed to meet the rigorous demands of hazardous environments. Certified with ATEX standards, this Flameproof Terminal Housing ensures safe and reliable electrical connections in areas where explosive gases or dust are present. Its robust construction and IP66 waterproof rating make it an ideal choice for use in Zone 1 and Zone 2 hazardous locations, providing excellent protection against moisture, dust, and other environmental factors.

This Hazardous Location Connection Box is widely used across various industries such as oil and gas, chemical plants, paper mills, and manufacturing facilities where safety and durability are paramount. In oil and gas industries, the CJX junction box facilitates secure and explosion-proof connections for instrumentation and control systems, minimizing the risk of sparks or electrical faults that could trigger dangerous incidents. In chemical plants, it protects sensitive electrical terminals from corrosive substances and explosive atmospheres, ensuring continuous and safe operation.

Paper mills and manufacturers also benefit from the Crown Extra Explosion Proof Junction Box by maintaining safe electrical distribution in volatile production areas. Its flameproof design effectively contains any internal explosion, preventing the propagation of flames to the surrounding hazardous atmosphere. With a minimum order quantity of just 1SET and an affordable price of USD 50 per set, the CJX model offers cost-effective safety solutions. Packaging is done in 1SET/CTN, and delivery is prompt within 10-20 days.

The Crown Extra CJX Explosion Proof Junction Box supports OEM customization, allowing businesses to tailor the product to their specific requirements. With a supply capacity of 1000 sets per month and flexible payment terms (50% deposit and 50% upon delivery), it is well-suited for both small and large-scale projects. Whether for new installations or maintenance upgrades, this Flameproof Terminal Housing is the trusted choice for electrical connection safety in hazardous areas, ensuring compliance and protection in challenging industrial environments.
