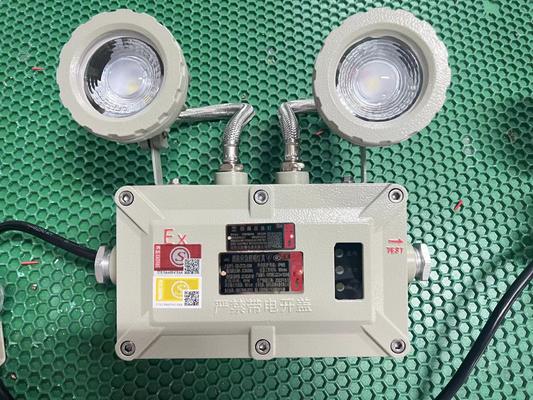

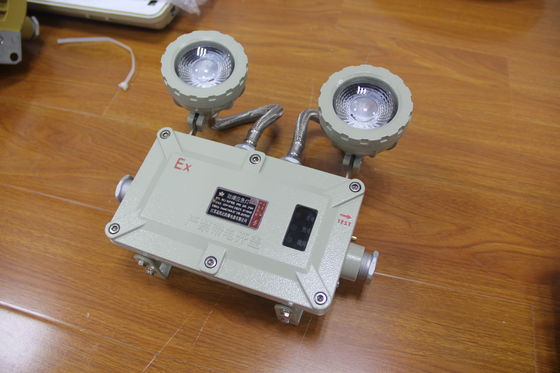

Wall Mounted 220v Double Heads 90 Min Emergency Time 20*3w Explosion Proof LED Emergency Fire Light

प्रमाणन
चीन crown extra lighting co. ltd प्रमाणपत्र
चीन crown extra lighting co. ltd प्रमाणपत्र
मैं अब ऑनलाइन चैट कर रहा हूँ

Wall Mounted 220v Double Heads 90 Min Emergency Time 20*3w Explosion Proof LED Emergency Fire Light

Wall Mounted 220v Double Heads 90 Min Emergency Time 20*3w Explosion Proof LED Emergency Fire Light
Wall Mounted 220v Double Heads 90 Min Emergency Time 20*3w Explosion Proof LED Emergency Fire Light Wall Mounted 220v Double Heads 90 Min Emergency Time 20*3w Explosion Proof LED Emergency Fire Light Wall Mounted 220v Double Heads 90 Min Emergency Time 20*3w Explosion Proof LED Emergency Fire Light

बड़ी छवि :  Wall Mounted 220v Double Heads 90 Min Emergency Time 20*3w Explosion Proof LED Emergency Fire Light

उत्पाद विवरण:
उत्पत्ति के प्लेस: जियांगसु, चीन
ब्रांड नाम: Crown Extra
प्रमाणन: ATEX,CE,ROHS,CNEX,ISO9001
मॉडल संख्या: बीसीजे
भुगतान & नौवहन नियमों:
न्यूनतम आदेश मात्रा: 1पीसी
मूल्य: USD51 per pc
पैकेजिंग विवरण: कार्टन 、 लकड़ी के बक्से 、 पैलेट
प्रसव के समय: 15 कार्य दिवस
भुगतान शर्तें: टी/टी
आपूर्ति की क्षमता: 50000pcs/महीना

Wall Mounted 220v Double Heads 90 Min Emergency Time 20*3w Explosion Proof LED Emergency Fire Light

वर्णन
नमूना: बीसीजे शक्ति: 2*3W
आकार: 243*570*55मिमी आपातकालीन समय:: 90मिनट/180मिनट
वज़न: 2.7 किलो आवेदन: जोन 1, 2 और ज़ोन 21, 22
प्रकाश दक्षता: 100lm/w आईपी ​​डिग्री: आईपी65
चार्ज का समय: 24 घंटे बढ़ते शैलियों: दीवार
पूर्व -अंकन: पूर्व डी आईआईसी टी6
प्रमुखता देना:

220v wall mounted emergency light

,

explosion proof LED fire light

,

90 min emergency time flameproof light

Wall Mounted 220v Double Heads 90 min emergency time 20*3w Explosion Proof LED Emergency Fire Light



BCJ Series



Wall Mounted 220v Double Heads 90 Min Emergency Time 20*3w Explosion Proof LED Emergency Fire Light 0

Features:

1. Aluminium alloy for better heat dissipation
2. Superior gasketing seals between the mounting module, housing, and optical assembly for optimum performance in wet and corrosive environments
3. Multi-mounting arrangements to suit any lighting layout
4. Saves in energy, maintenance and installation costs
5. Instant, bright illumination Instant, bright illumination




Applications


A wide range of hazardous areas where ignitable vapors, dust, moisture and corrosive elements are present
Areas requiring frequent on-and-off of lights or power cycling- no warm up time required
Typical applications include:
Oil and gas industries
Chemical, petrochemical
Pharmaceutical industries
Pulp and Paper
Waste and sewage treatment
Power Generation
Other high humidity, high dust, high temperature, vapor locations




Standard Materials
Housing: Die-casting aluminum
Exterior: Stainless steel
Globe: Tempered glass
Gasket: Silicon rubber




Certifications
ATEX
CNEX
CE
RoHS
ISO9001





Wall Mounted 220v Double Heads 90 Min Emergency Time 20*3w Explosion Proof LED Emergency Fire Light 1





Electrical Data
Ex Marking Ex e IIC T6/ Ex tD A21 T80
Classification Group II, Catogory 2 GD; Class I, Division 1 and 2,Group A,B,C,D
Application Zone 1, 2 & Zone 21, 22
IP Degree IP66
Light source LED 3W
Input Voltage 220VAC, 50/60 Hz/24VDC/24VAC/36VDC
Light efficiency 100-110lm/w
Work time >120 min
Charging time 24 hrs
Mounting Styles Pendant; Ceiling; Chain; Embedded; Wall; Stanchion





Installation Instructions:
Before installation, check voltage, power and other parameters carefully and
make installation preparations arrordingly to layout circuit.
1. organize firstly supporting spare parts and accessories
2. do shut off power before installation
3. the loading capacity of the ceilingfixed item where the lamp is installed should be the same as the lamp weight
4. do power-on test to make sure the lamp can be lighted
5. make sure the lamp is installed firmly, turn on the light finally
Company information:
Crown Extra Lighting Co., Ltd. is a comprehensive enterprise integrating R&D, production, sales and service.
The company is located in Changzhou, known as the "Dragon City" in the Yangtze River
Delta of China. The company is committed to becoming a provider of green, environmentally friendly,
energy-saving, and leading industrial lighting solutions, providing high-quality lighting products for
petroleum, petrochemical, electric power, metallurgy, railways, aerospace, military, public security,
fire fighting, ships, roads, pharmaceuticals, etc. And professional technical service programs.
FAQ:
Q1. Can I have a sample order for explosion-proof led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: What kind of payments do you accept?
A:T/T, L/C, Western Union,, MoneyGram, etc..
Q3:What is you main products?
A: Explosion-proof LED light ,explosion-proof box,explosion proof fittings, etc.
Q4: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q5: What's the MOQ?
A:MOQ is 1 set.



Wall Mounted 220v Double Heads 90 Min Emergency Time 20*3w Explosion Proof LED Emergency Fire Light 2

Wall Mounted 220v Double Heads 90 Min Emergency Time 20*3w Explosion Proof LED Emergency Fire Light 3
