उत्पाद विवरण:
|
| प्रोडक्ट का नाम: | विस्फोट प्रूफ हाई बे एलईडी लाइट्स | सामग्री: | डाइस-कास्टिंग एल्यूमीनियम |
|---|---|---|---|
| रंग तापमान: | 5700k-6500k | दीपक चमकदार दक्षता: | 120 एलएम / डब्ल्यू |
| सीआरआई (आरए>): | 70 ± 2 | कार्य -तापमान: | -20 ℃ -60 ℃ |
| आवेदन क्षेत्र: | ज़ोन 2,21,22 | चालक ब्रांड: | मीनवेल |
| प्रकाश स्रोत: | क्री | वोल्टेज: | 100-240V |

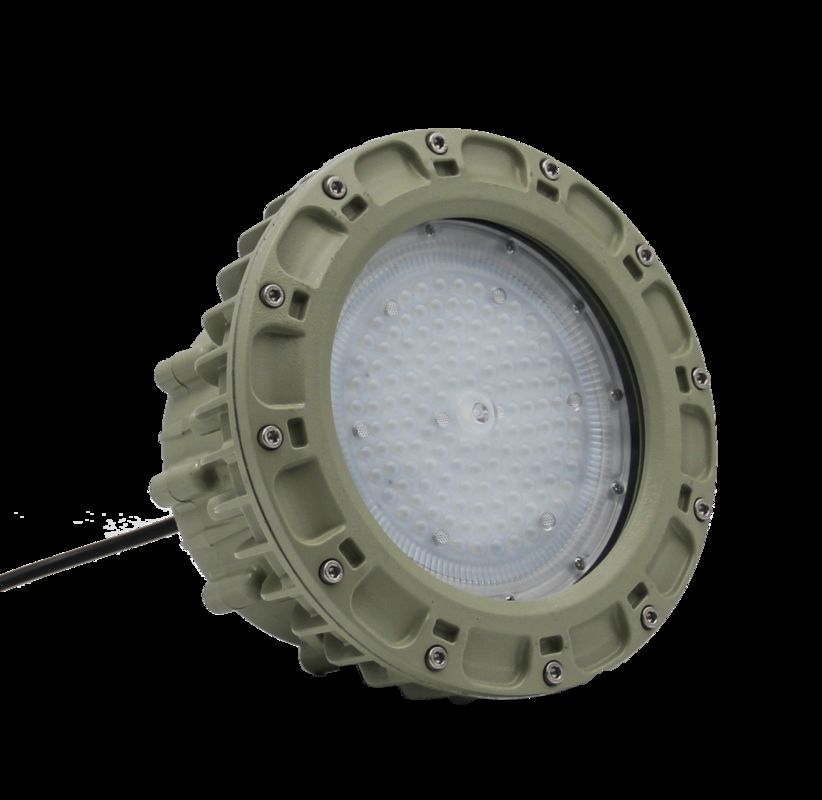

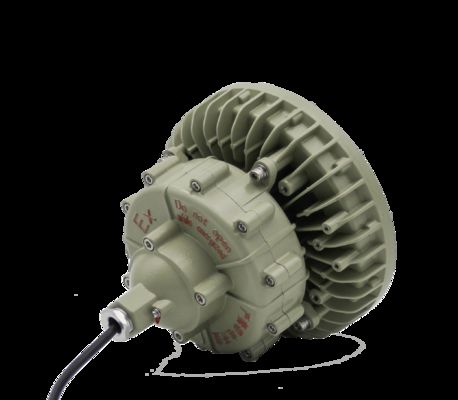

Maintenance Free Hazardous Location Explosion Proof Led High Bay Lights
Features:
1. Zone2, Zone 21,22
2. Instant on crisp white light output
3. High efficiency drivers and LEDs provide, low cost operation in harsh and heavy industrial applications
4. Isolated LED compartment reduces temperature within driver housing
5. Multi choice of beam angle for 60° 90° 120°
Application:
1. Petroleum and Chemical Industry
Locations: Refineries, chemical plants, drilling platforms, gas stations, and oil depots.
Hazardous Materials: Flammable and explosive gases and vapors such as crude oil, natural gas, gasoline, benzene, and alcohols.
2. Coal Mining Industry
Locations: Underground tunnels, mining faces, and transfer stations.
Hazardous Materials: Gas (primarily methane) and coal dust.
3. Dust Explosion Environments
Locations: Flour mills, sugar refineries, feed processing plants, metal processing plants (aluminum and magnesium powders), wood processing plants, and plastics plants.
Hazardous Materials: Combustible dust suspended in the air.
4. Pharmaceutical and Food Industry
Locations: Some raw material workshops, ethanol extraction plants, and starch or sugar powder processing areas.
Hazardous Materials: Alcohol vapors and combustible dust.
5. Other Industrial Sites
Sites: Paint spraying workshops (solvent vapors), solvent warehouses, gas boiler rooms, and sewage treatment plants (may generate methane).
Hazardous Materials: Various flammable and explosive chemicals.
Specification:
| European (ATEX) Gas and Dust | II 2G Ex nR e IIC T6 II 2D Ex td T80℃ | ||||||
| For use in | Zone 2 & Zone 21, 22 | ||||||
| Electrical data | |||||||
| Rated voltage | 100-240VAC, 50-60Hz | ||||||
| Power factor | >0.95 | ||||||
| THD | <20% | ||||||
| Luminous characteristics | |||||||
| Power consumption [W] | 20～70 | 80-100 | 100-200 | 220-300 | |||
| Colour rendering [CRI] | 70 (±2) | ||||||
| Colour temperature [K] | 5700-6500 | ||||||
| Luminaire efficiency [Lm/W] | 125 | ||||||
| Beam angle | 120° (60°, 90° is optional) | ||||||
| Mechanical data | |||||||
| Degree of protection | IP66 | ||||||
| Cable entry | G 3/4” | ||||||
| Weight [kg] | 4.8 | 6.4 | 8.8 | / | |||
| Terminal | ≤2.5 mm² | ||||||
| Mounting Styles | Ceiling; Wall Bracket; Pendant | ||||||
Installation method:
Bracket type, hoisting type, flange type, ceiling type, wall type
